ISO Certified Green Double Shaft Clay Mixing Machine

Product Categories
CANGZHOU BOHAI BRICK MACHINERY CO.,LTD
Contact Now

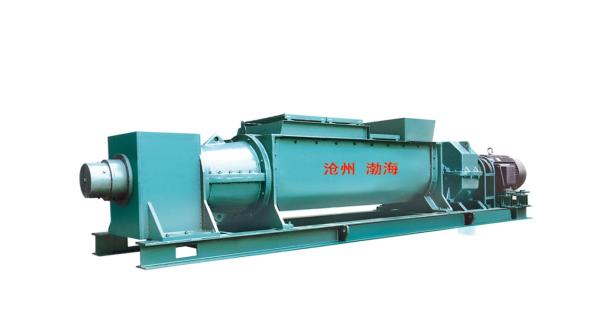

ISO Certified Green Double Shaft Clay Mixing Machine

Brand Name : BOHAI

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1SET

Price : USD

Payment Terms : T/T

Supply Ability : 50SETS

Delivery Time : 620DAYS

Packaging Details : CONTAINER

Model : SJJ

Production capacity : 50-80 (M3/h)

Agitator shaft speed : 40 r/min

Overall dimension : 7500×1500×1000 (mm)

Mixing diameter : 680(mm)

machine type : automatic

warranty : 1 year

Raw material : clay , coal gangue, shale and fly ash

Contact Now

CB- Dual-Axle Strong Clay Stirring Machine

Pruduct Description

Our machine is suitable for burdened and crushed materials for brake-making. It is used to mix, roll, extrude and exhaust the materials, make them small and mix with water for the second time. To make the materials mix well, improve the mellowness and brick production line.
The main frame is welded by using high-quality steel, and has the features of rational structure, solid and durable properties, strong adaptability, low energy consumption, high efficiency, and easy maintenance and so on. It is the ideal equipment for production of various hollow brick by shale, coal gangue fly ash and clay.

Advantages

All-steel welded structure, floating spindle, wear-resistant high-chromium alloy hub. The auger is newly designed according to the nature of raw materials and has the features of high output, low power consumption and excellent performance.

Date Units of meas SJ400*50
Production capacity M3/h 60-100
Agitator shaft speed r/min 38
Power kw 110
Overall dimension mm 7800×1650×1100
Mixing diameter mm 550

Date Units of meas SJ400*43
Production capacity M3/h 50-80
Agitator shaft speed r/min 40
Power kw 75
Overall dimension mm 7400×1550×1000
Mixing diameter mm 500

Date Units of meas SJ350*36
Production capacity M3/h 40-70
Agitator shaft speed r/min 45
Power kw 55
Overall dimension mm 6700×1450×950
Mixing diameter mm 450

Date Units of meas SJ300*36
Production capacity M3/h 40-70
Agitator shaft speed r/min 45
Power kw 45
Overall dimension mm 6000×1450×950
Mixing diameter mm 450
