JKY150S- 4.0 Red Two - Stage Vacuum Extruder Fly Ash Brick Making Machinemanu Facturing Equipment
1. Product features
Brick-making machine extrusion pressure, high vacuum, dense mud, clean appearance. Fully suitable for one yard of combustion process requirements, high productivity, low water content of molding, reduce energy consumption and loss in production. It is an ideal equipment for producing all coal gangue, high volume fly ash, shale and low quality sand brick
2.Specifications
It is appliable for the production of solid brick , load-bearing perforated brick , and hight-rate hollow brick with the material of coal gangue , shale , high-volume fly ash , urban construction waste , gangue waste , inferior soil
1)Reasonable structure
2) High pressure extrude
3) Trowel with wear-resistance metal spray
4) Optional install
5) Stability
3 Techical parameter
| Date | Units of meas | JKY150s-4.0 |
| Production capacity | Pieces/h | 40000-55000 |
| Reamer diameter | mm | 750 |
| Pressure | Mpa | 4.0 |
| Moisture content | % | 13～18 |
| Vacuum degree | Mpa | ≤-0.092 |
| Power | kw | 450+200 |
| Size | mm | 11000×3300×3700 |
| Weight | kg | 48000 |
3. Product Advantag
1. Easy material
Double stage automatic vacuum brick making machine is an optimum equipment for making bricks with clay, shale, industrial tailings, coal gangue and river sludge as materials. And the materials are easy to find.
2. Durable
Spare parts of this automatic brick making machine are made of wear-resistant steel which is dealt with quenching heat treatment and wear-resistant spray painting craft. The body of the machine is made of high quality carbon steel. The whole machine is durable and has a long working life.
3. Easy to operate
This machine works fully automatic and saves labor at the same time. There is no worry about the difficulty of running the machine.It's easy to maintain.
4. High quality accessories
The automatic brick making machine’s decelerator is famous Brand Decelerator, which is a very famous and high quality decelerator brand in China.
5. Flex installation
You can install this automatic brick making machine in different ways according to the room of your brick plant, which can help save room for you.

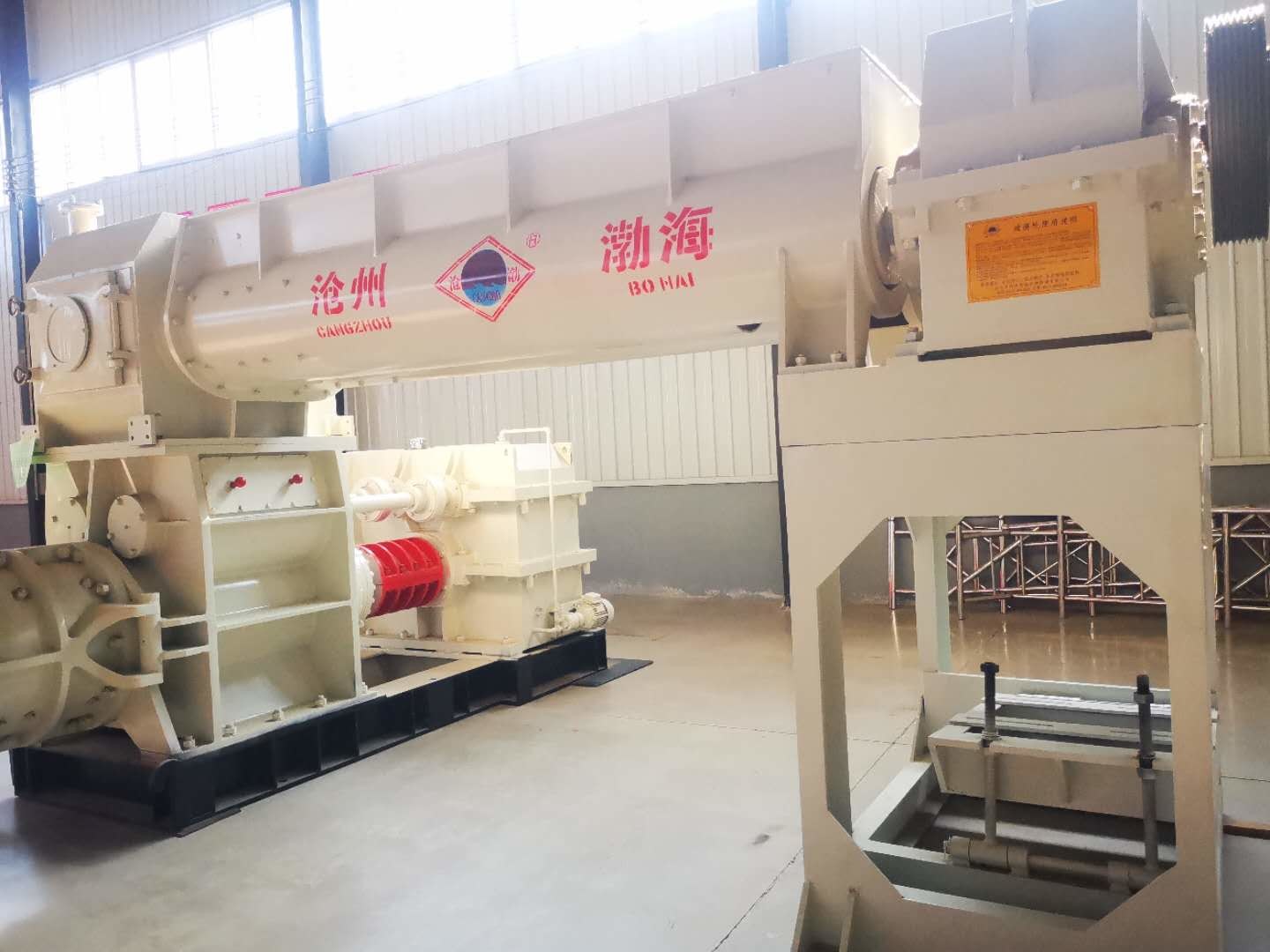

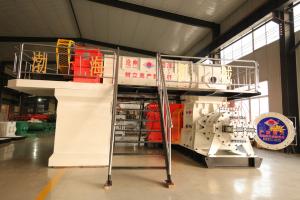

4. Machine picture
Product Tags:
|
|
55000pcs/H 750mm Fully Automatic Fly Ash Brick Making Machine Images
|
