32000pieces/H JKY60 4.0Mpa Fly Ash Block Making Equipment with stirrer
1.product description
1.32000pieces/H JKY60 4.0Mpa Fly Ash Block Making Equipment with stirrer is a new type of brick-making equipment designed and manufactured by our company.Produce 22,000 bricks per hour, with a cutter diameter of 550 mm
2. The overall steel structure, the main parts are cast from high wear-resistant alloy, and undergo high-frequency heat treatment.
3. Reasonable structure, large load, energy saving, high efficiency, easy maintenance, more suitable for making porous bricks and solid bricks from shale, coal stone and fly ash.
2. Product features:
1. The automatic red clay brick machine is used to produce large holes, large cross-section solid bricks and hollow bricks with various hole sizes, and is suitable for a variety of materials.
2.32000pieces/H JKY60 4.0Mpa Fly Ash Block Making Equipment with stirrer has the characteristics of novel structure, advanced technology, high extrusion pressure, high output and high vacuum. Controlled by pneumatic clutch, it is sensitive, convenient and reliable.
3. After being extruded from the lower auger into the fuel tank, the soil and other raw materials are cleaned by vacuum. When the machine model is different, various specifications of porous bricks can be produced.
3 . Techical parameter
| Date | Units of meas | JKY60-4.0 |
| Production capacity | Pieces/h | 18000-32000 |
| Reamer diameter | mm | 600 |
| Pressure | Mpa | 4.0 |
| Moisture content | % | 13～18 |
| Vacuum degree | Mpa | ≤-0.092 |
| Power | kw | 250+90 |
| Size | mm | 7150×2200×3100 |
| Weight | kg | 28000 |
4.Product Advantage
32000pieces/H JKY60 4.0Mpa Fly Ash Block Making Equipment with stirrer is used to produce solid bricks and hollow bricks with great quantities of holes and large section in all size of hole style.It is applicable to many sorts of materials.
Its features are novel structure,advanced technology,high extrusive pressure,high production and high vacuum degree.It adopts pneumatic clutch to control.It is sensitive,convenient and reliable.
Raw materials such as soil purification through vacuum after entering the fuel tank from the lower auger extrusion molding, when the machine with different models, can produce various specifications of the porous brick.

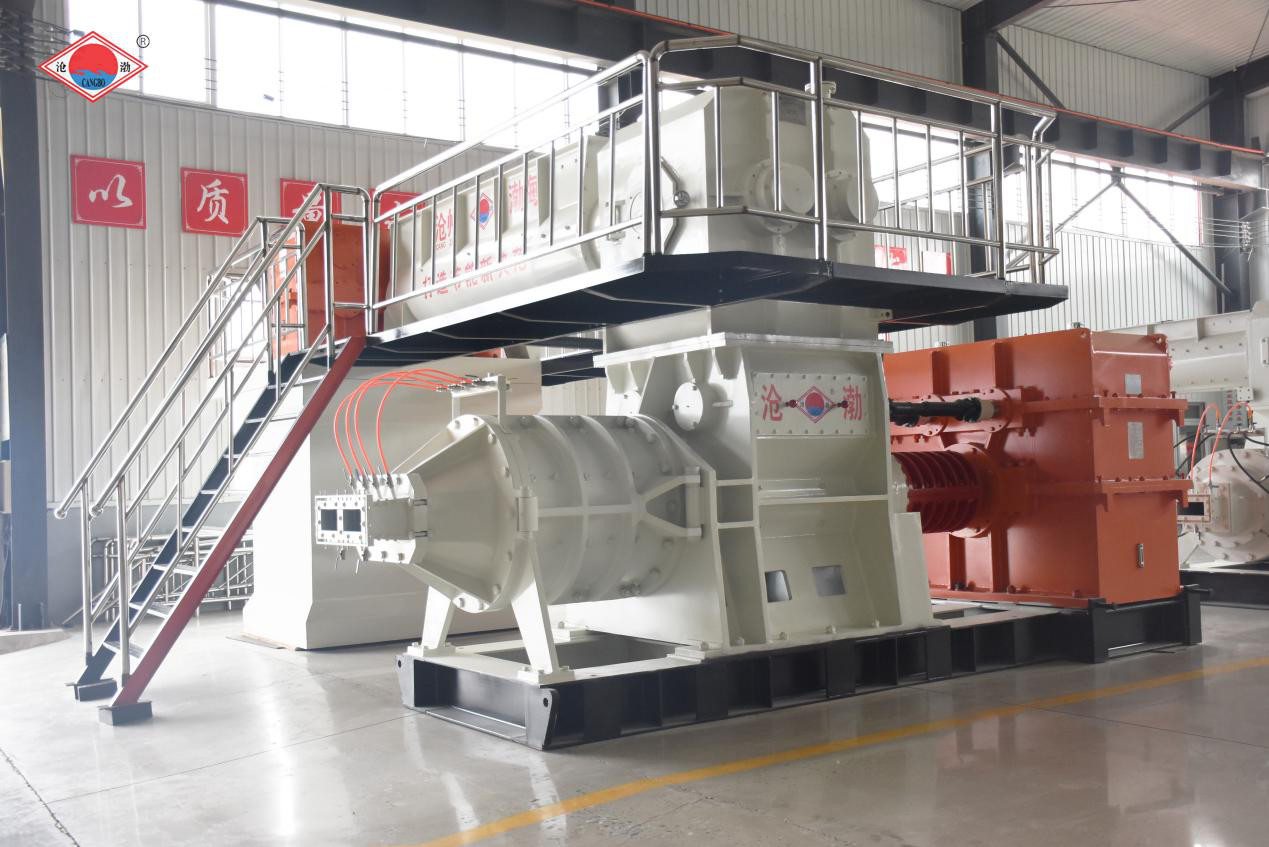

5. . Machine pictures
