Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene

Product Categories
CANGZHOU BOHAI BRICK MACHINERY CO.,LTD
Contact Now

Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene

Brand Name : BoHai

Model Number : BH-7177

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Two in a month

Delivery Time : 20day

Packaging Details : Container

Processing Type : Plastic Thermoforming Machine

Max.Forming Height(mm) : 80 mm

Forming Length (mm) : 300 mm

Sheet Thickness(mm) : 0.2 - 2.5 mm

Forming Width (mm) : 1000 mm

Installed power : 200kw

Warranty : 1 Year

Plastic Type : PP

Contact Now

Three Station Blister Forming Machine Servo One Machine

1. Mechanical, pneumatic and electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.
2. The upper and lower mold forming methods.
3. Servo feeding, stepless length adjustment, high speed, accuracy and stability.

Product Paramenters
Screw material
38CrMoAIA
Nitriding depth of screw (mm)
0.6-0.7
Screw hardness
>HV840
Screw barrel hardness
>HV940
Screw speed (r/min)
10~80
Blister limit (Pa)
2×102
Heating system
Cast aluminum ring
Cooling system
Air-cooled
Gear box
Helical gear
Screw heat treatment
Carburizing and grinding teeth
Die heating system
Stainless steel heating rod
Die structure
Straight cone hanger T-shaped head
Drive
Hydraulic transmission
Die design
Six-sided hard chrome plating and polishing
Forming machine
Motor (kw)
1.5
Forming depth (mm)
80
Vacuum pump speed (m3/h)
80

Sheet thickness (mm)
0.2-2.5

Blister limit (Pa)
2×102
Air compressor (L)
100

4. The second stage heating of the electric heating furnace.
5. The temperature control system of the electric heating furnace adopts full computer intelligent automatic compensation control. The division one control and the other adopts the human-machine interface digital input, which has high fine-tuning accuracy, uniform temperature and stability (not affected by external voltage, temperature fluctuation does not exceed 1 degree), Low energy consumption (about 15% energy saving), long service life of the furnace plate and other advantages.

Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene


Product Tags:

three station plastic thermoforming machine



0.2mm plastic thermoforming machine



three station plastic vacuum forming machine


Quality Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene wholesale

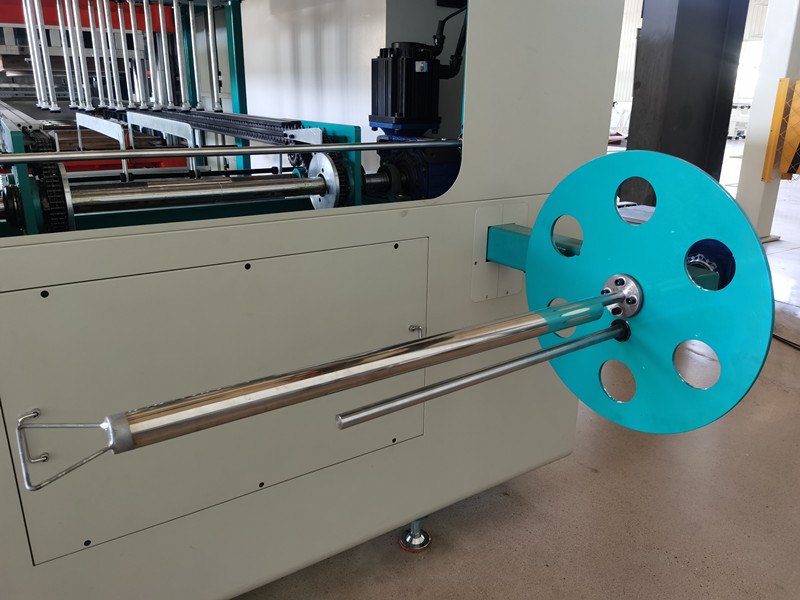

Three Station Servo 0.2mm Plastic Thermoforming Machine For Polypropylene Images
