Fast Speed Plastic 2mm Blister Forming Machine Three Station Pp Pvc Pet

Product Categories
CANGZHOU BOHAI BRICK MACHINERY CO.,LTD
Contact Now

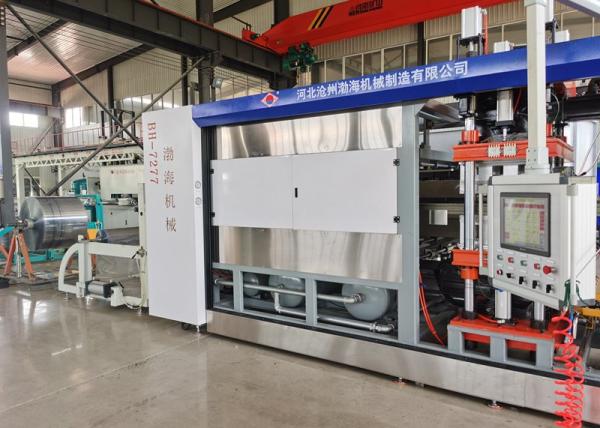

Fast Speed Plastic 2mm Blister Forming Machine Three Station Pp Pvc Pet

Brand Name : BoHai

Model Number : BH-7177

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Two in a month

Delivery Time : 20day

Packaging Details : Container

Processing Type : Plastic Thermoforming Machine

Core Components : Motor, PLC

Suitable material : PP,PET,PVC

Power(W) : 110 kW

Forming Width (mm) : 750 mm

Water Comsumption(L/min : 3 L/min

Sheet Thicknes : 0.2-2mm

Warranty : 1 Year

Contact Now

High Speed Plastic Blister Forming Machine Three Station Pp Pvc Pet

The whole machine adopts full servo control, the positioning is more accurate, and the molding is more stable. The equipment has the advantages of stable operation, low noise, energy saving and environmental protection, and high grade of finished products.

Product Paramenters
Max. Forming Area
750*480mm
650*320mm
Max. Forming Depth
125mm(custom height)
Sheet Thickness
0.3-1.8mm
Sheet Width
760mm
650mm
Max. Forming Speed
35 times/min
Air Pressure
0.6-0.8mpa
Air Consumption
3.0m³/min
2.0m³/min
Water Consumption
0.7m³/h
0.5m³/h
Rated Power
140Kw
98Kw
Used Power
98Kw
69Kw
Power Supply
AC 380V,50Hz, Three-phase, Four-wire
Dimension
L8500*W2200*H3100mm
L6000*W2000*H2700mm
Weight
About 6.5T
About 5T

The temperature control system of the electric heating furnace adopts full computer intelligent automatic compensation control. Long life and other advantages. With product data and parameter file memory function. The width of the film feeding chain can be adjusted automatically or separately.

Fast Speed Plastic 2mm Blister Forming Machine Three Station Pp Pvc Pet


Product Tags:

2mm blister forming machine



three station blister forming machine



fast speed pp blister forming machine


Quality Fast Speed Plastic 2mm Blister Forming Machine Three Station Pp Pvc Pet wholesale

Fast Speed Plastic 2mm Blister Forming Machine Three Station Pp Pvc Pet Images
