All In One Vacuum Thermoforming Machine Automatic Forming Cutting

Name: All In One Vacuum Thermoforming Machine Automatic Forming Cutting
Brand: BoHai
Price: 1 USD

Brand Name : BoHai

Model Number : BH-7177

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Two in a month

Delivery Time : 20day

Packaging Details : Container

Plastic Type : PVC,PE, PET,PC,PP,HIPS,APET,PETG,PS etc

Max.Forming Height(mm) : 230 mm

Forming Width (mm) : 450 mm

Forming Length (mm) : 710 mm

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, P

Key Selling Points : Automatic

Applicable Industries : Farms, Restaurant, Food & Beverage Shops

name : All In One Vacuum Thermoforming Machine Automatic Forming Cutting

Contact Now

All-in-one automatic vacuum forming cutting thermoforming machine

Specification

Power Voltage:	220V / 380V / 440V
Forming Length:	660-1250mm (Arbitrary adjustment)
Forming Width:	410-760mm (Arbitrary adjustment)
Forming Height:	230mm (maximum)
Heater Max Power:	39KW
Vaccuum Pump Power :	3KW/4HP
Air Pressure :	0.8Mpa
Machine Max Power:	47KW
Machine Dimension:	750026002630mm
Net Weight:	3000kg
Speed:	8-25s/time according to difference material
Material Thickness:	0.12--2.5mm
Material:	PVC, PE, PET, PC, PP, HIPS, APET, PETG, PS etc.

1. Making plastic packing covers of Toy, Hardware, Food, Electronics, Pharmaceuticals, Medical, Commodity, Apparels industry etc.

2. Making the plastic products with emboss, such as plastic ceilling, wallboard, cake box, automobile plastic material and Hygienic Material etc.

3. Making exquisite inner linning or outer packing to make the products looks refereshing and inprove the competitive ablility.

4. suitable for materials of PVC,PE, PET,PC,PP,HIPS,APET,PETG,PS, etc

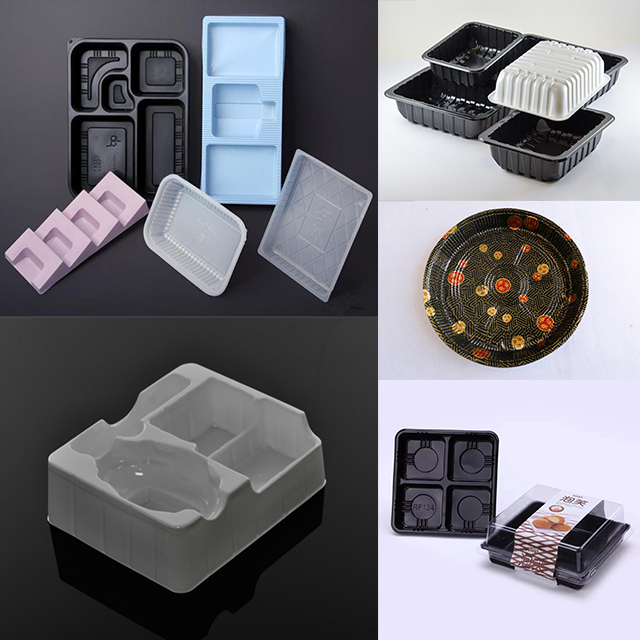

5. Can be used to produce snack box, fruit tray, biscuit box, toothbrush, battery, gift, little hardware, stationary, decorative article, plastic container, pill, etc.

6. This machine can be used to make various types of plastic material film formed into different shapes of plastic packing cover or products.

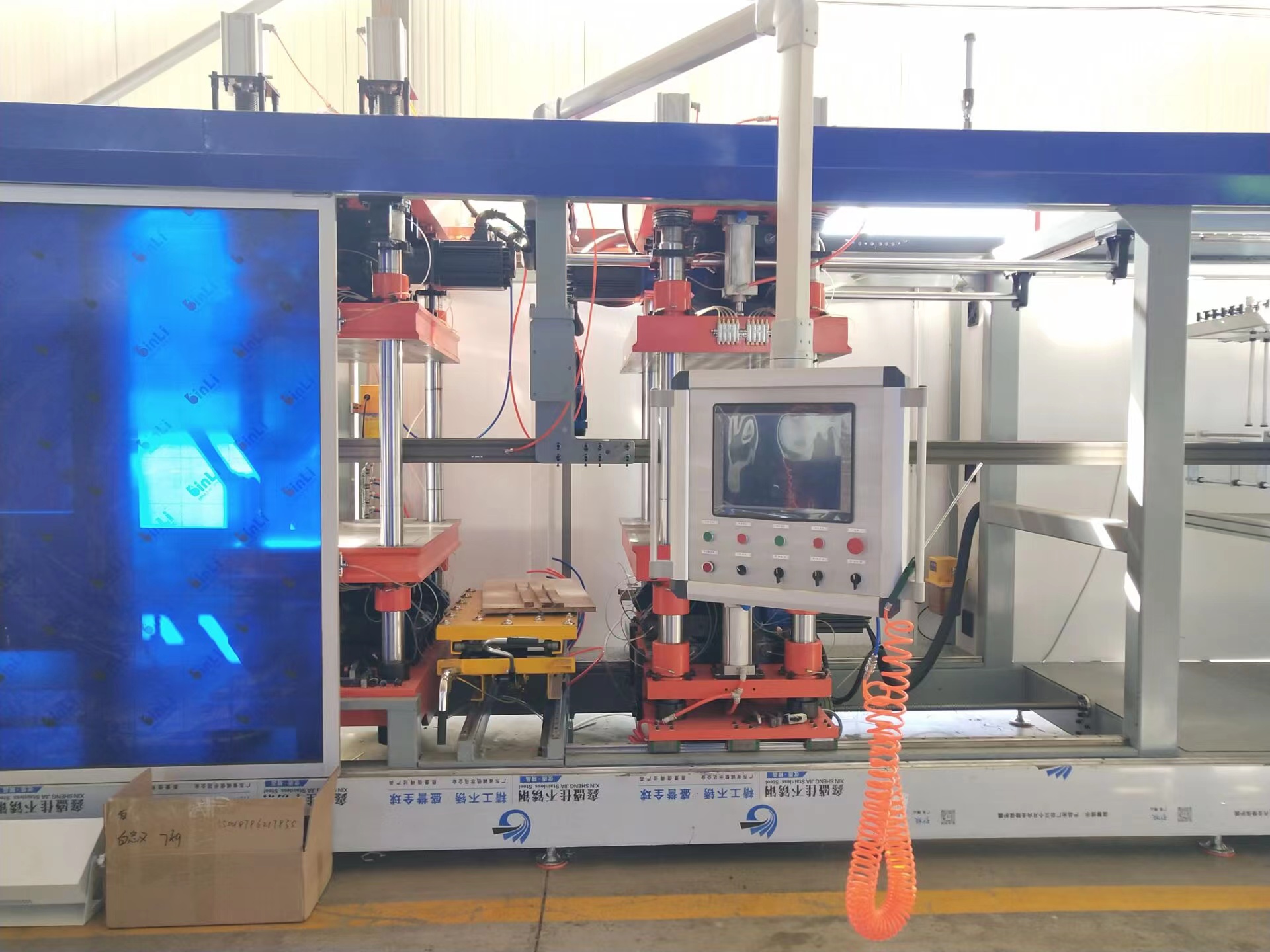

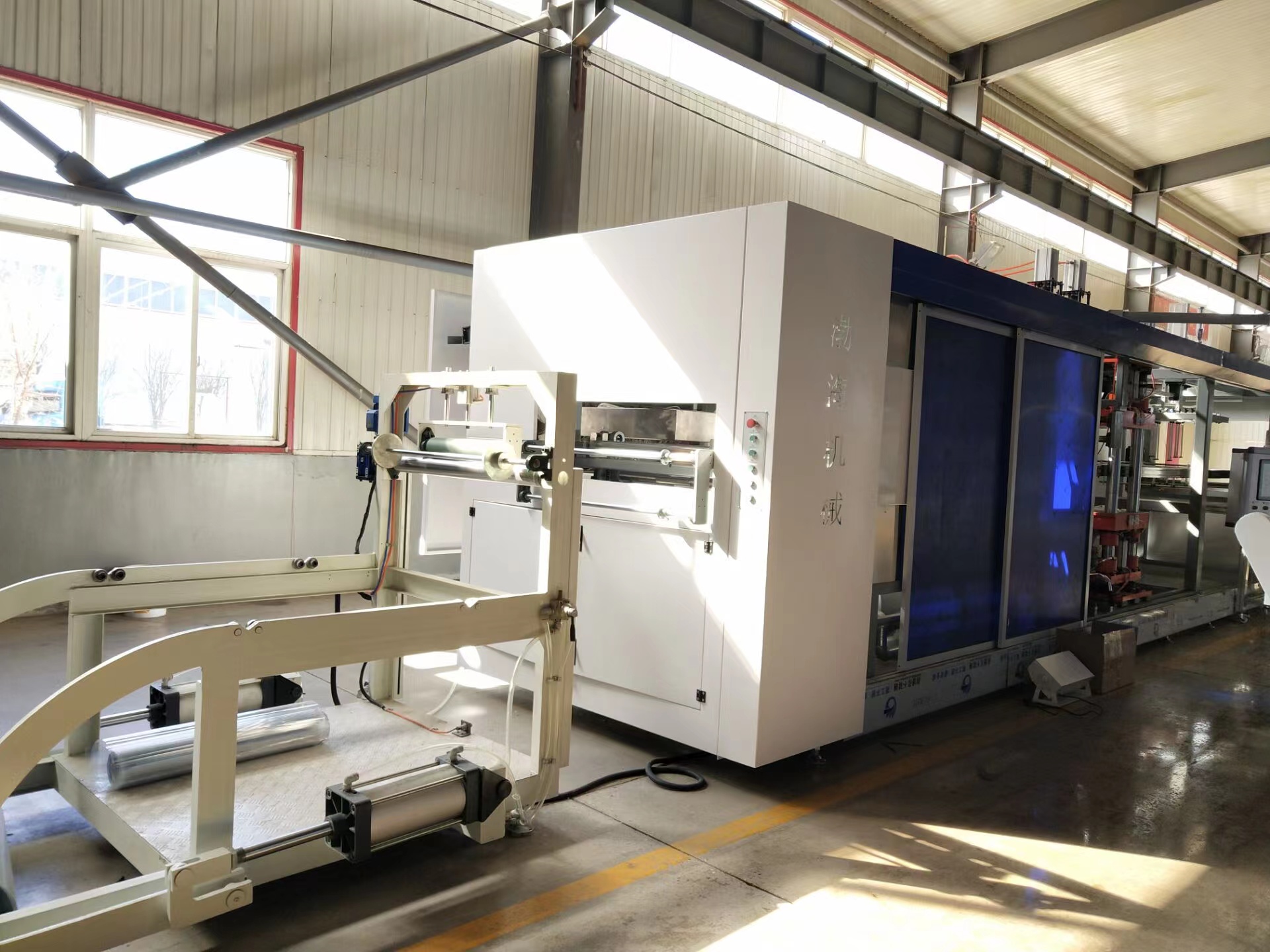

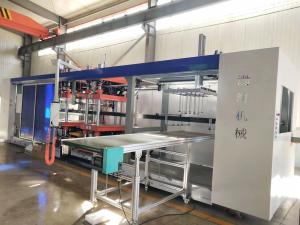

All In One Vacuum Thermoforming Machine Automatic Forming Cutting

All In One Vacuum Thermoforming Machine Automatic Forming Cutting Images
