650mm Multi Station Blister Cup Making Machine Fully Automatic Pvc

Name: 650mm Multi Station Blister Cup Making Machine Fully Automatic Pvc
Brand: BoHai
Price: 1 USD

Brand Name : BoHai

Model Number : BH-7177

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Two in a month

Delivery Time : 20day

Packaging Details : Container

Processing Type : Plastic Thermoforming Machine

Forming Width (mm) : 650mm

Air Pressure(MPa) : 0.7 MPa

Product Type : Plastic Cup

Marketing Type : New Product 2020

Weight (T) : 4 T

Plastic Type : Hips, PVC, PS, PP, PET

Heading Power : 80kw

Contact Now

Multi-StationBlister Forming Machine Fully Automatic Pvc

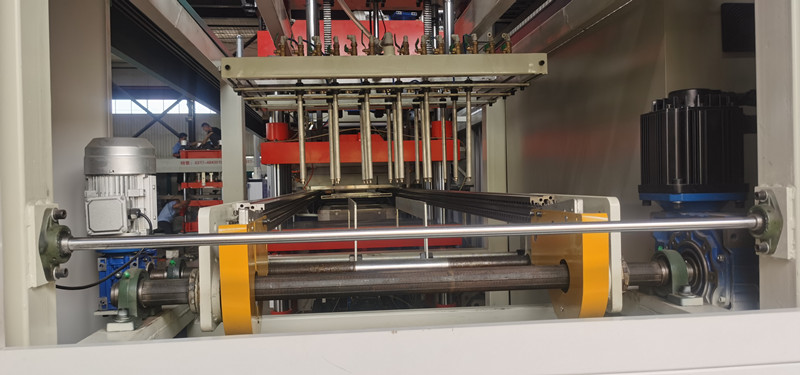

1) The sheet is driven by pin chain and the pin chain is driven by servomotor. The feeding length could be adjusted by parameter setting through touch screen.

2) The stretching of plug inside of up mould is controlled by servomotor.

3) Mould adopts four pillars to fix the mould.

4) It adopts hydraulic system to drive the movement of the mould.

Product Paramenters

Machine Description	Full-Automatic Servomotor Controlled Thermoforming Machine
Model	FJL-SZ-680 II
Approximate Forming Area	650*320 mm
Strok/min approx.during production	15-30
Require sheet width	500-660 mm in rolls
Mode of cutting arrangement	In mould automatic
Sheet thickness Range	0.2-2.0mm
Material	PP,PS,HIPS,PET,PVC
Max forming depth	120mm(Special height can be customized)
Oil Pump Motor Power	15KW
Max.Sheet roll diameter	800mm
Heating arrangement	Top+bottom heating with IR Ceramic Heater(120pieces,650W)
Temperature Controller & Thermocouple	PID K-Type
Type of Mould	Multi cavity 1 to 4 rows

5) Fill oil automatically to lubricate mechanism movement at certain time.

6) Temperature controller modules to control up and down temperature area.

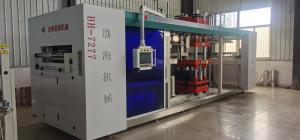

650mm Multi Station Blister Cup Making Machine Fully Automatic Pvc
