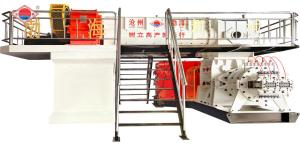

50000pcs/M Two Stage 600mm Auto Bricks Machine

JKY - 150s 50000 Pcs/M Two - Stage Vacuum Extruder Clay Raw Material Auto Brick Making Machine

1. Product features:

Brick-making machine extrusion pressure, high vacuum, dense mud, clean appearance. Fully suitable for one yard of combustion process requirements, high productivity, low water content of molding, reduce energy consumption and loss in production. It is an ideal equipment for producing all coal gangue, high volume fly ash, shale and low quality sand brick.

2 . Techical parameter

3 . Product Advantage

The Workflow Of Pneumatic Brick Setting Machine :

1, When the cutter pushes the green bricks to the intelligent seperator , the separator starts work , it drives the separating board stretch and separate the bricks .

2, When the brick separating is finished , the lift cylinder turns down .

3, When the chunk reached to the location of the scheduled blank,Chunk Fixture works in the way of picking up the bricks and then the chunk is highly lifted by the Lifting Cylinder to a predetermined height.

4, After all of those progress,then separating cylinder points out and open the air channel and walking device drives blank stacking machine to the top of a kiln car,and then lift cylinder dropped down to the scheduled height for releasing billet,the chunk open and lay the blanks on the kiln car it complete all the stacking work.

5, All these functions are centralize control by electric,the operator simply can achieved operating automatically by starting the appropriate procedures.
